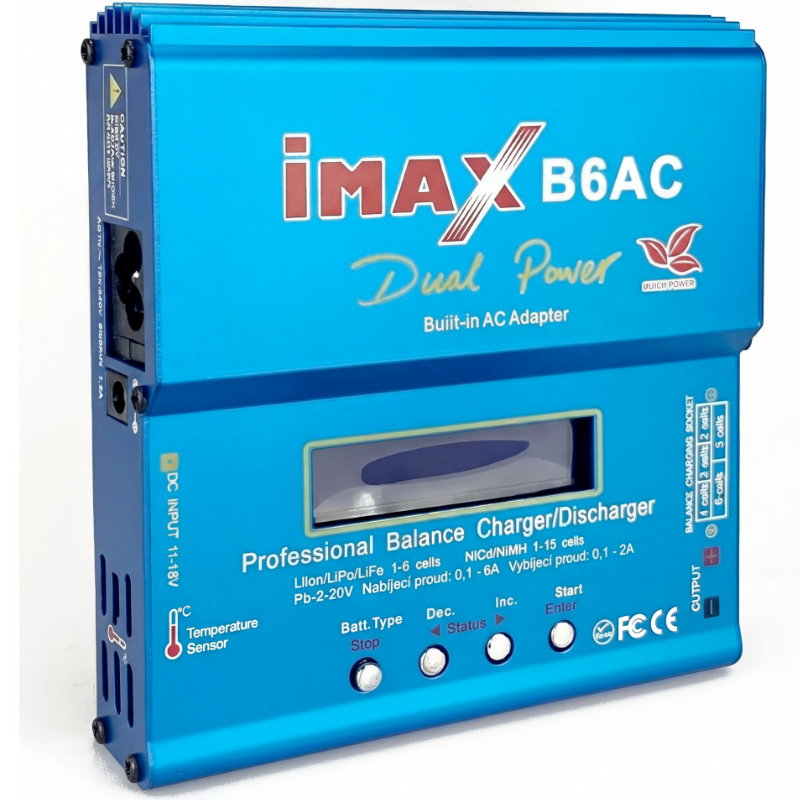

The powerful charger and discharger IMAX B6AC 80W is a universal device for charging, discharging, and managing batteries. It supports a wide range of battery types, including NiCd, NiMH, LiPo, LiIon, LiFe, and Pb (lead), and can work with cells in the range of:
- NiCd / NiMH: 1–15 cells
- LiPo / LiIon / LiFe: 1–6 cells
- Pb: 2–20V (1–10 cells)
Thanks to the integrated balancer, it ensures even balancing of individual cells, thus extending their lifespan and increasing charging safety.
The device offers a wide range of settings:
- charging current 0.1–6A
- discharging current up to 2A
- charging power up to 80W
- discharging power up to 10W
For maximum safety, the charger is equipped with advanced features:
- protection against reverse polarity, short circuit, and overheating
- temperature sensor for battery monitoring
- charging termination based on time, capacity, or temperature
- protection against undervoltage of input voltage
With these features, you can be sure that your batteries will be charged safely, gently, and efficiently.
The charger has a backlit LCD display that clearly shows all important information and allows you to store up to 5 custom charging and discharging programs for quick repeated use.
Power supply is flexible – it can be used from the network 100–240V AC (built-in power supply) or from an external source 11–18V DC, making it suitable for use at home and in the field.
Technical execution includes:
- microprocessor control
- automatic cell balancing
- intuitive operation
- durable and compact aluminum body
Thanks to the Digital Power (3–20V) mode, the charger can also serve as a stabilized voltage source for testing or powering devices.
Maximum power and parameters:
- charging power: 80W
- discharging power: 10W
- weight: 476 g
- dimensions: 145 × 135 × 35 mm
The package includes:
- charger IMAX B6AC
- AC power cable (230V)
- DC cable with alligator clips
- charging cables (alligator clips, 2.5 mm jack, 2× 2pin)
- CZ manual
This charger is ideal for modelers, technicians, and demanding users who want to have maximum control, safety, and performance when working with batteries.
